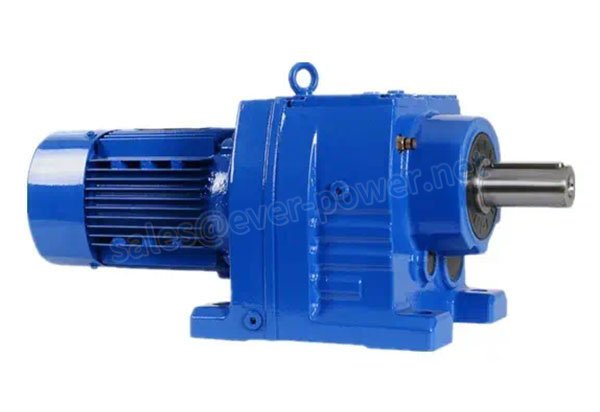

Inline Helical Gearbox with Motor

There are many different types of helical gearboxes, including the inline helical gearbox. The inline helical gearbox has the highest speed and is the most common type. An inline helical gearbox has the same planetary ratio as a spur gear, but its radial counterpart has the same center gap. The main difference between the two is the reverse module configuration. A spur gearbox has the same number of teeth as an inline helical gearbox, but the helix angle varies. This is because the actual pitch varies depending on the helix angle.

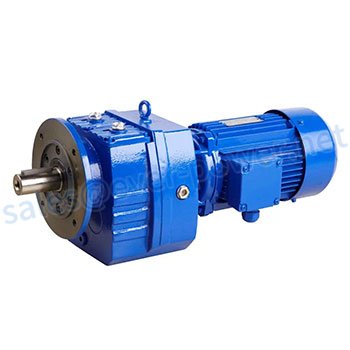

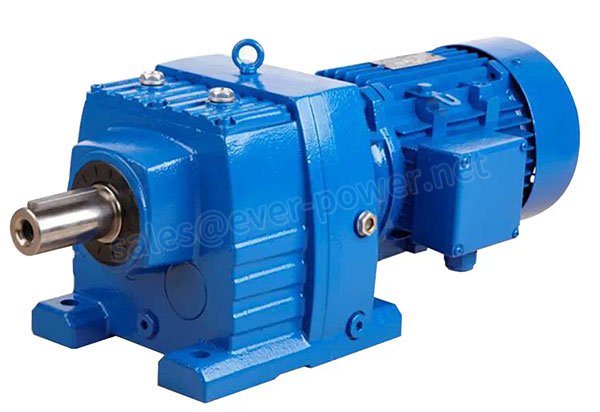

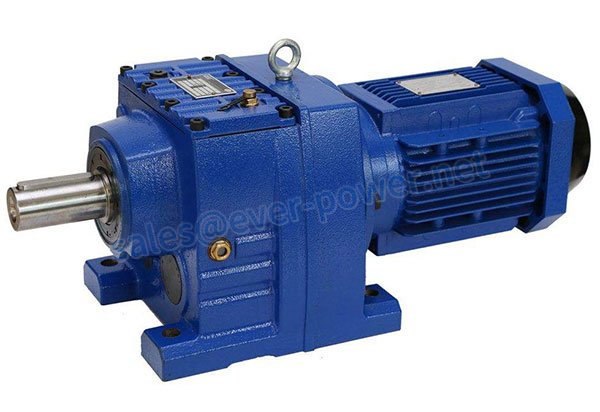

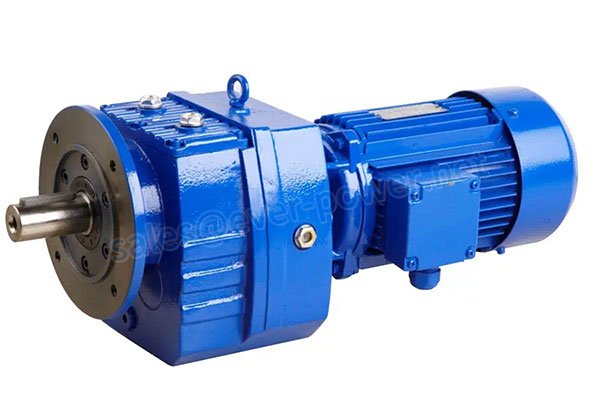

R Series Helical Inline Gearbox

R系列内嵌螺旋齿轮箱有一个年级st iron housing and high-strength steel gears. This series of helical gearbox can be powered by either a DC or AC supply source. For safe operations, the helical gearboxes are flameproof with brake motor options. As a leading inline helical gearbox manufacturer, we understand the convenience and efficiency an inline transmission guarantees. All our inline helical gearboxes and motors are easy to maintain and replace. With our inline helical gearbox, you can attain a wide range of output torque (200 – 1800 Nm), ratio (3.33 – 287.74), mounting position (M1 – M6), and rating power (0.18 kW – 160 kW). We have a wide of inline helical gear motors/gearboxes to choose from. R series inline helical gearbox has a high-rigidity cast-iron box with ribs; the hard-toothed face gear is made of high-quality alloy steel, the surface is hardened by carburizing and quenching, the grinding teeth are finely processed, the transmission is stable, the noise is low, the bearing capacity is large, the temperature rise is low, and the service life is long. R series inline helical coaxial helical inline gearbox is widely used in metallurgy, sewage treatment, chemical, pharmaceutical, and other industries. The R series helical inline gearbox is usually vertically mounted. The size and variety of lubricating oil used in an R helical gearbox are important. The vertical installation causes the transmission gear oil to leak when the gearbox stops working.

Specifications of R Series Inline Helical Gearbox

Features of Inline Helical Gearbox

• Iron case with pressure casting
• High-quality weight and beautiful appearance
• Muti aspect mounting, easy adjustment
• Smooth operation, free maintenance
• Low noise, smooth operation

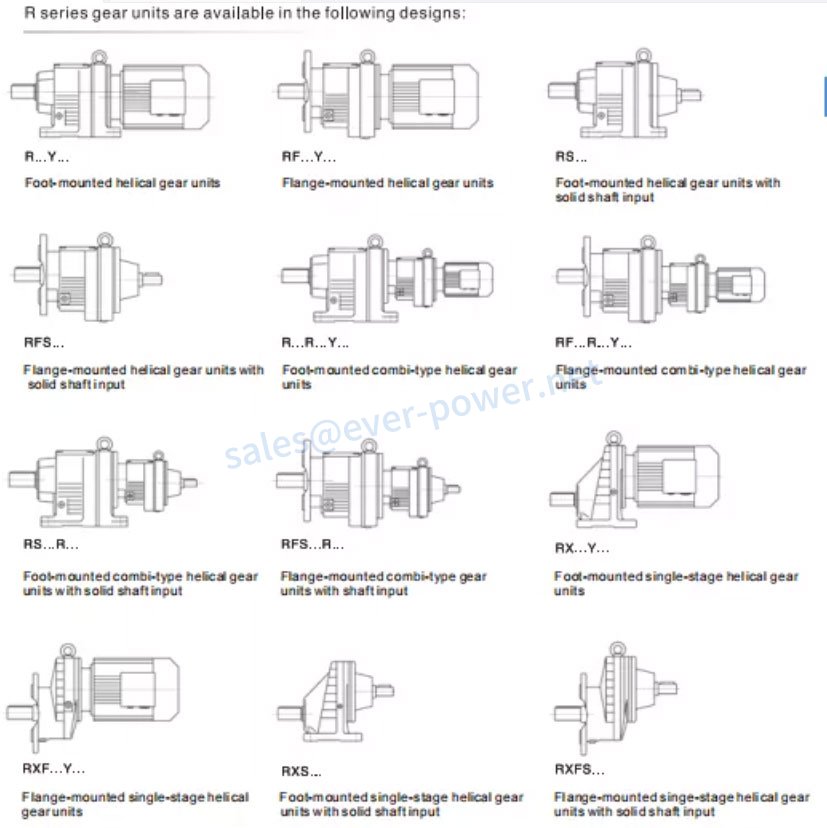

Inline Helical Gearbox Design

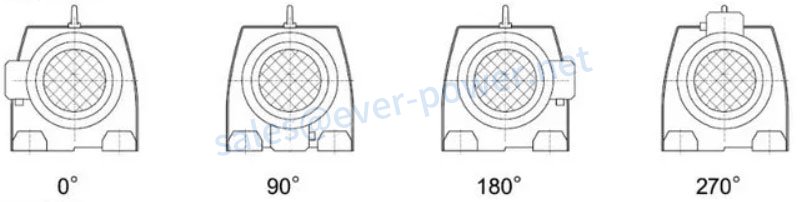

Conduit box position

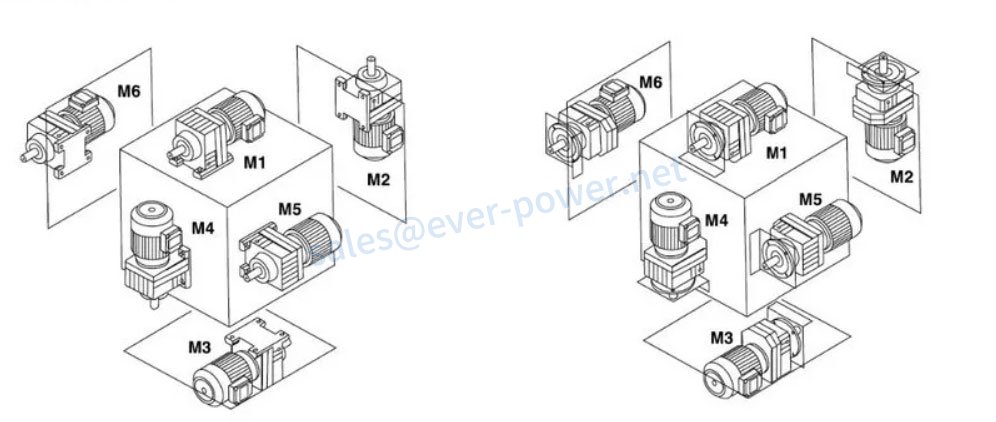

Mounting Position
