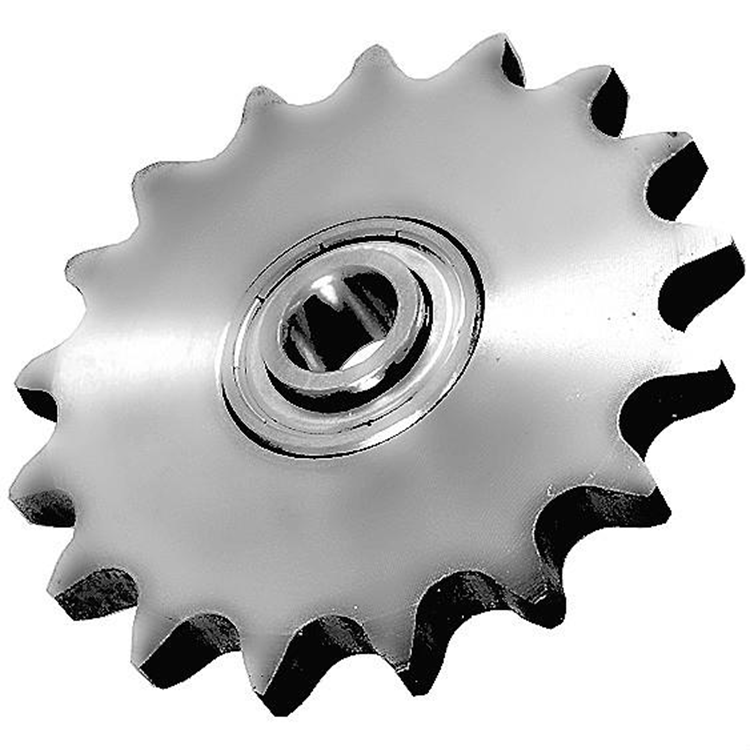

Chain Tensioning Wheels With Ball Bearings

chain tensioning wheels are supplied as a set with integrated ball bearings. The bearings are sealed on both sides and lubricated for life, so they are maintenance-free. The wide inner ring ensures perfect mounting without washers. Ball race and sprocket are press-fitted to guarantee a secure, permanent connection. The sprocket is made from steel with a mechanical strength of 490-600 N/mm2.

These tensioning wheels are suitable for roller chains from size 06 B-1 to 20 B-1. Chain tensioning wheels for duplex roller chains and roller chains to ANSI standard (DIN 8188) are available on request.

Application areas

To be used with roller chains DIN ISO 606, as tensioning wheel on tensioning element, as spare wheel for chain tensioners or universally as return chain or tensioning wheel

Product specification

Ready-to-install chain tensioning wheel set complete with mounted ball bearing

Tensioning elements and sprockets make up a complete, ready-to-install, continually-tensioning torsion chain tensioner

In order to get a complete chain tensioner both tensioning element and sprocket have to be ordered

Can be mounted at the deflection and tensioning points

Permanently lubricated 2-Z bearings guarantee perfect running

With mounting parts (screw and nut)

Matching: standard tensioning element (Cat. No. 700625 ff) and zinc plated tensioning element (Cat. No. 700631 ff)

Technical specification

Material:

Sprockets: steel St40 / St50

Ball bearing: roller bearing steel with lifetime grease filling, maintenance-free

Mounting screw: zinc plated steel

Nut: zinc plated steel

Temperature range:-20 to +120 °C
